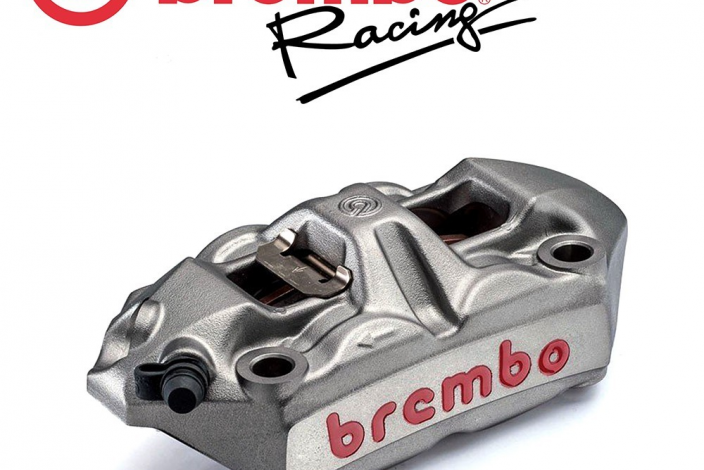

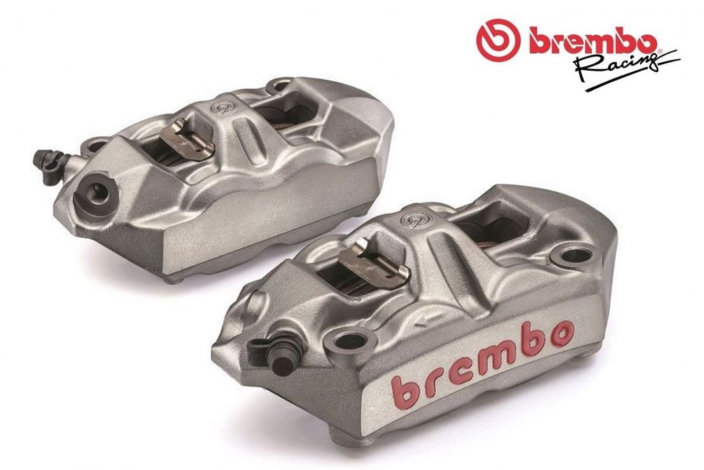

BREMBO RACING M4 MONOBLOCK 108MM

RADIAL BRAKE CALIPERS KIT + PADS

"Brembo Racing"



Code: 220A397.10



Monobloc caliper, obtained from a single piece of molten aluminum alloy, which concentrates the most advanced melting and processing technologies to obtain a monolithic caliper body of absolute lightness, with advanced stiffness and precision values.

Particular attention has been paid to the hydraulics and the shape of the caliper body, both subject to careful technical refinement work.

The caliper body, all inside which we find 4 pistons with a diameter of 34 millimeters, is characterized by the rigidity values ​​found thanks to the characteristic triple bridge shape.

With the monoblock fuse, Brembo puts a disposition of all technology enthusiasts, the successful use in MotoGP, which provides the obtaining of the caliper body from a single piece of molten aluminum, thus using an optimal rigidity.

The product, supplied in a kit consisting of two grippers, is equipped with sintered pads, which includes the top technology available on the market today.




BRAKE PADS ARE INCLUDES IN THE PRICE



Radial connection: 108mm

Brake caliper body: MonoblocK

Pistons diameter: 34mm

Number of pistons: 4

H. braking band: 34mm

Superficial position: Ossidazione anodica titanio

Material: Alluminio di fusione

Weight without pads: 800gr
