Components Included:
- Valve body manufactured out of high-strength steel with copper sealing
- Safety cap manufactured out of anodized aluminum
- Highly flexible drain tube made from silicone (ca. 40 cm long)
- Drain valve currently available in all thread sizes
- Detailed instructions and manual

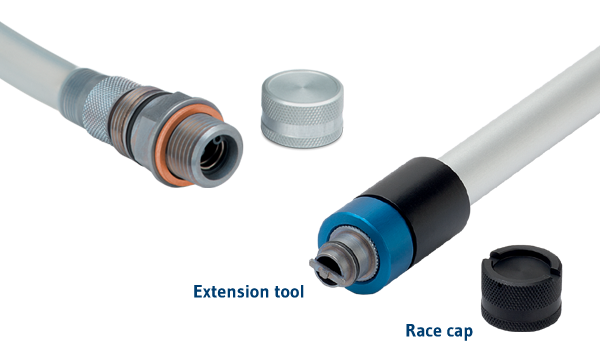

Accessories:
- Extension tool
- Race cap with safety wire holes

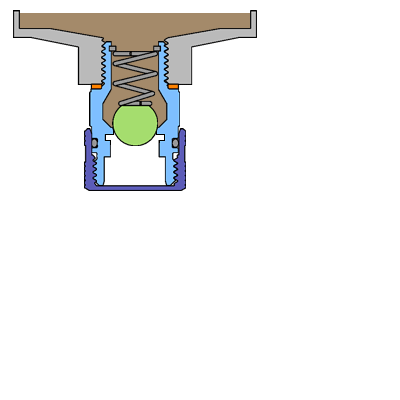

The construction

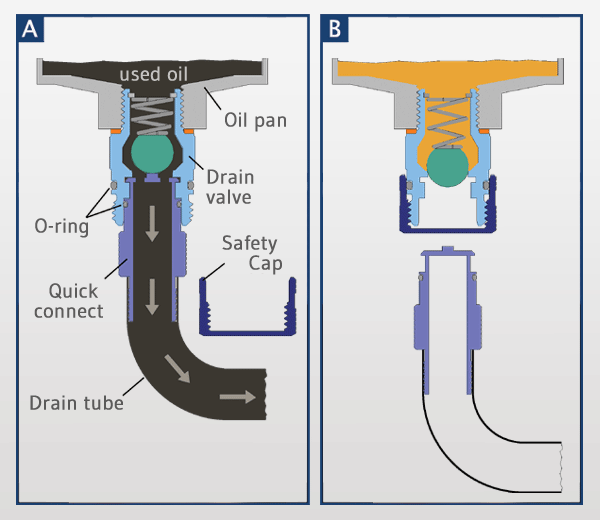

Product structure
A - Principle of the oil change
B - Driving condition
How it works
This is how to use it

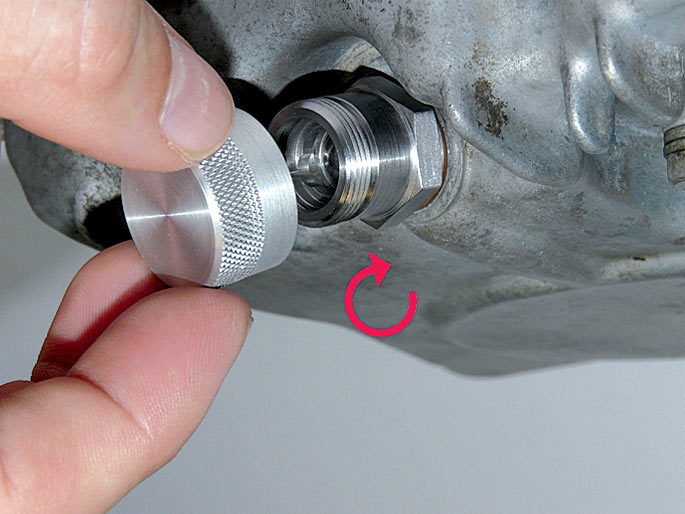

The stahlbus®-oil drain valve takes the place of the conventional drain plug. For the oil change, you unscrew the safety cap and attach the quick connect with the drain tube. Once this is connected the valve opens and the oil starts flowing into the catch.
After disconnecting the drain tube, the valve closes automatically and you only need to install the safety cap.
Anywhere an oil change is necessary - the stahlbus® oil drain valve is the ideal solution.
Look how easy an oil change can be!

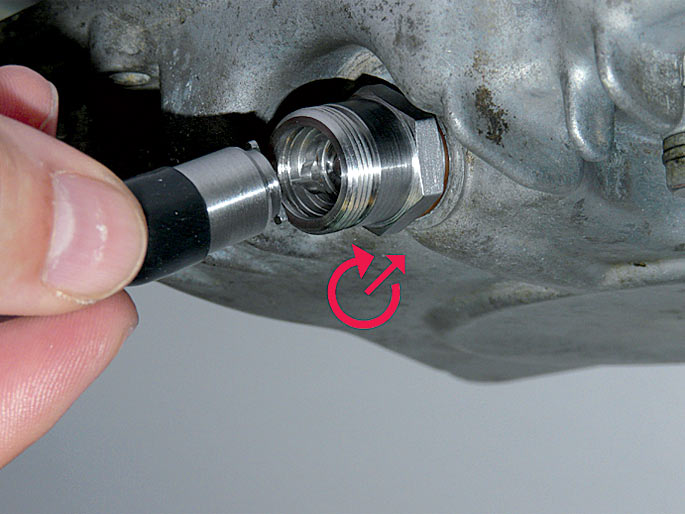

| | Step 2
Connect drain tube and turn a quarter turn to lock into place. |
|

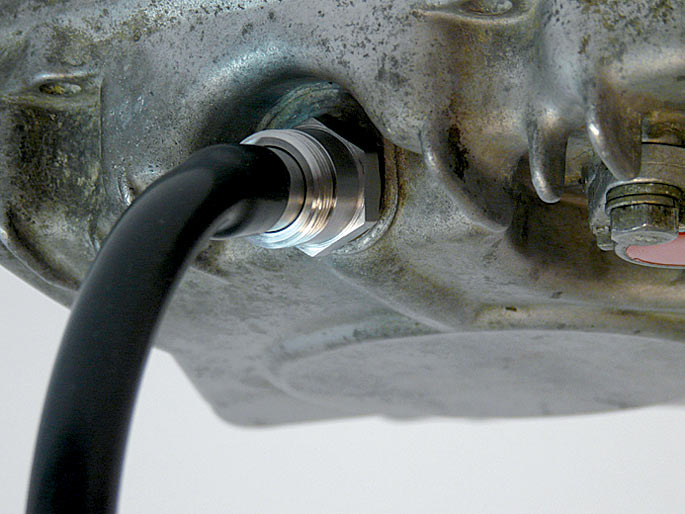

| | Step 3
Oil flows through drain tube. |
|

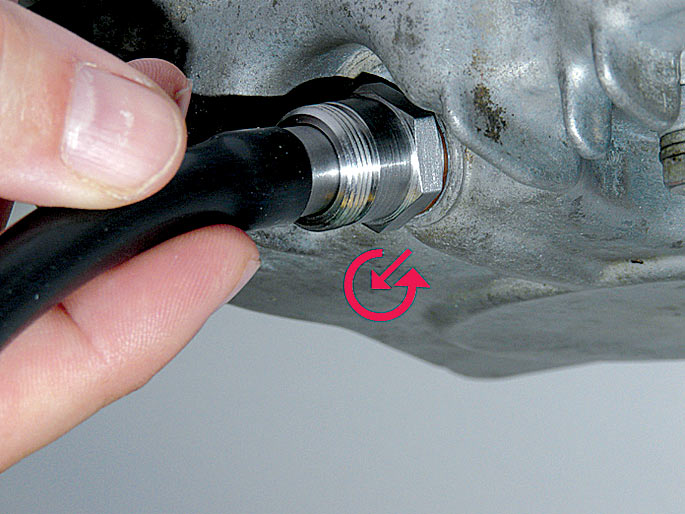

| | Step 4
Disconnect drain tube with quarter turn and remove. |
|

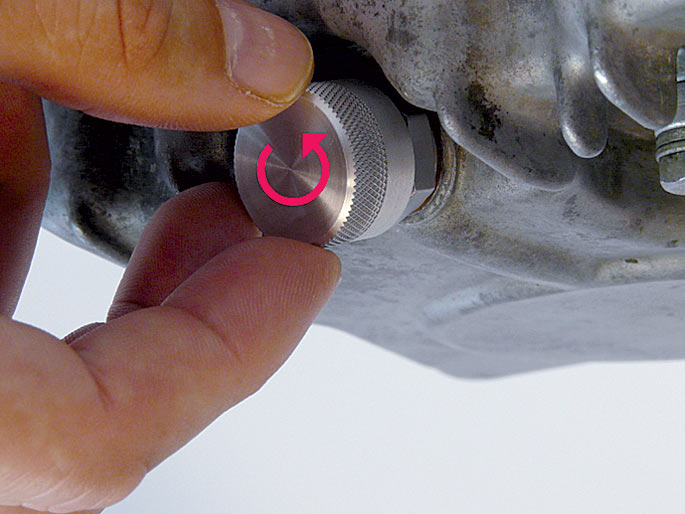

| | Step 5
Install safety cap. |
|

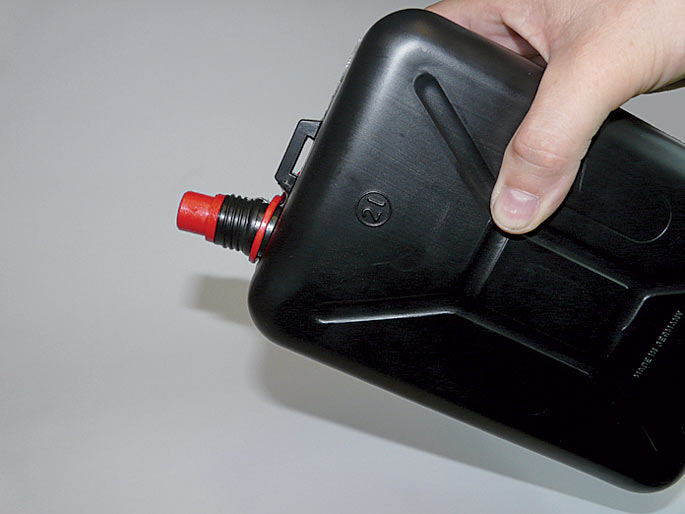

| | Step 6
Ready to refill your oil! |
|
